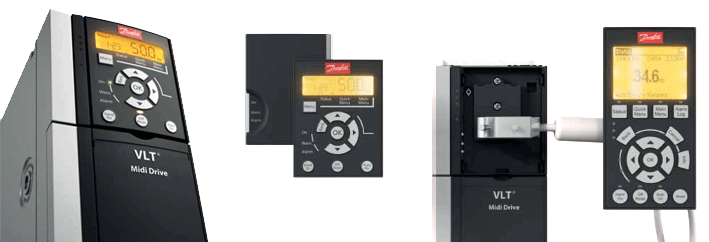

FC280 VLT Midi Drive
    VLT-Midi-FC280
    Dimenions
    Dimensions – See pdf

    Reach new levels of performance and access the true high-efficiency potential of your applications with the upcoming VLT® Midi Drive FC 280, the evolution of the popular VLT® 2800 drive. Unlock valuable savings, with a wide range of features designed to make installing, using, and maintaining the drive as cost-efficient as possible – just set it and forget it. The VLT Midi Drive will offer 5 enclosure sizes in the extended power range 0.37 kW to 22 kW.

    Unlock the true potential of your solutions

    For precise and efficient motor control for machine builders in the food and beverage, material handling, and processing industries, the VLT® Midi Drive is ideal. It is strong on control performance, functional safety, and flexible fieldbus communication. The right mix of features ensures the drive suits your task, whether for conveyor systems, mixers, and packaging systems or driving pumps, fans, and compressors.It’s also an easy retrofit for VLT® 2800 in established plants or machine concepts. Save space and budget

    Integrated features free you from finding space and budget to install extra components:

    • DC chokes reduce harmonics to less than 48% THDi
    • RFI filter
    • Safe Torque Off (STO)
    • Brake chopper

    Flexible fieldbus communication

    Fieldbus communication variants


    • PROFIBUS
    • PROFINET
    • Ethernet/IP
    • CANopen
    • Modbus RTU and FC Protocol are integrated as standard

    Options

    Memory module
    The VLT® Memory Module MCM 101 facilitates helpful implementation of factory settings for machine builders, fast installation of firmware updates, and easy transfer of settings during retrofit.

    24 V DC external supply
    The back-up power supply keeps the control system alive in the event of mains loss.

    Adapter for graphical LCP
    Enable the full functional interface by connecting the graphical LCP.

    Enhanced numerical LCP
    Use this effective user interface to access parameters, check the drive status and reset alarms.

    Below are standard models FC280 drives for further options such as profibus please contact the sales office.
    Key Pad / LCP Options (Keypads do not come as standard with the drive)
    Order Code Description
    130B1107 + 132B0281 Control Panel LCP 102 (Graphical) + 132B0281 adapter needed.
    132B0254 Control Panel LCP 21 (Numeric)
    132B0262 Control Panel LCP Blind Cover (Blank no LCP)
    200-240VAC Single Phase IP20 (Keypads do not come as standard with the drive)
    Order Code Descriptive code KW Amps Control Card
    134X3042 FC-280PK37S2E20H1XXCXXXSXXXXAX 0.37 2.2 Standard w. Modbus
    134X3053 FC-280PK55S2E20H1XXCXXXSXXXXAX 0.55 3.2 Standard w. Modbus
    134X3054 FC-280PK75S2E20H1XXCXXXSXXXXAX 0.75 4.2 Standard w. Modbus
    134X3055 FC-280P1K1S2E20H1XXCXXXSXXXXAX 1.1 6 Standard w. Modbus
    134X3056 FC-280P1K5S2E20H1XXCXXXSXXXXAX 1.5 6.8 Standard w. Modbus
    134X3057 FC-280P2K2S2E20H1XXCXXXSXXXXAX 2.2 9.6 Standard w. Modbus
    200-240 VAC Three Phase IP20 (Keypads do not come as standard with the drive)
    Order Code Descriptive code KW Amps Control Card
    134U7942 FC-280PK37T2E20H2BXCXXXSXXXXAX 0.37 2.2 Standard w. Modbus
    134U7943 FC-280PK55T2E20H2BXCXXXSXXXXAX 0.55 3.2 Standard w. Modbus
    134U7944 FC-280PK75T2E20H2BXCXXXSXXXXAX 0.75 4.2 Standard w. Modbus
    134U7945 FC-280P1K1T2E20H2BXCXXXSXXXXAX 1.1 6 Standard w. Modbus
    134U7946 FC-280P1K5T2E20H2BXCXXXSXXXXAX 1.5 6.8 Standard w. Modbus
    134U7947 FC-280P2K2T2E20H2BXCXXXSXXXXAX 2.2 9.6 Standard w. Modbus
    134U7948 FC-280P3K7T2E20H2BXCXXXSXXXXAX 3.7 15.2 Standard w. Modbus
    380-480 VAC 3 Phase IP20 (Keypads do not come as standard with the drive)
    Order Code Descriptive code KW Amps Control Card RFI
    134U2184 FC-280PK37T4E20H1BXCXXXSXXXXAX 0.37 1.2 Standard w. Modbus Class A1/B (C1)
    134U2978 FC-280PK55T4E20H1BXCXXXSXXXXAX 0.55 1.7 Standard w. Modbus Class A1/B (C1)
    134U2979 FC-280PK75T4E20H1BXCXXXSXXXXAX 0.75 3.2 Standard w. Modbus Class A1/B (C1)
    134U2980 FC-280P1K1T4E20H1BXCXXXSXXXXAX 1.1 3 Standard w. Modbus Class A1/B (C1)
    134U2981 FC-280P1K5T4E20H1BXCXXXSXXXXAX 1.5 3.7 Standard w. Modbus Class A1/B (C1)
    134U2982 FC-280P2K2T4E20H1BXCXXXSXXXXAX 2.2 5.2 Standard w. Modbus Class A1/B (C1)
    134U2983 FC-280P3K0T4E20H1BXCXXXSXXXXAX 3 7 Standard w. Modbus Class A1/B (C1)
    134U2984 FC-280P4K0T4E20H1BXCXXXSXXXXAX 4 9.1 Standard w. Modbus Class A1/B (C1)
    134U2985 FC-280P5K5T4E20H1BXCXXXSXXXXAX 5.5 12 Standard w. Modbus Class A1/B (C1)
    134U2986 FC-280P7K5T4E20H1BXCXXXSXXXXAX 7.5 12 Standard w. Modbus Class A1/B (C1)
    134U2987 FC-280P11KT4E20H1BXCXXXSXXXXAX 11 24 Standard w. Modbus Class A1/B (C1)
    134U2988 FC-280P15KT4E20H1BXCXXXSXXXXAX 15 32 Standard w. Modbus Class A1/B (C1)
    134U2989 FC-280P18KT4E20H1BXCXXXSXXXXAX 18.5 37.5 Standard w. Modbus Class A1/B (C1)
    134U2990 FC-280P22KT4E20H1BXCXXXSXXXXAX 22 43 Standard w. Modbus Class A1/B (C1)

    Accessories
    Order Code Description
    130B1117 (Graphical) with fasteners, gasket and without LCP and with 3 m cable
    132B0102 (Numerical) with fasteners, gasket and without LCP and with 3 m cable
    132B0281 Graphical LCP Adapter
    132B0368 VLT® 24 V DC Supply MCB 106
    132B0335 IP21/Type 1 conversion kit -K1
    132B0336 IP21/Type 1 conversion kit – K2
    132B0337 IP21/Type 1 conversion kit – K3
    132B0338 IP21/Type 1 conversion kit – K4
    132B0339 IP21/Type 1 conversion kit – K5
    132B0363 Adapter Plate, VLT® 2800 size A
    132B0364 Adapter Plate, VLT® 2800 size B
    132B0365 Adapter Plate, VLT® 2800 size C
    132B0366 Adapter Plate, VLT® 2800 size D
    Data sheet
    For more information or price enquiries please contact southampton@cseuk.com or telephone – 02380 255757
