The VLT6000 was Danfoss’s leading HVAC Drive from 1996 -2008. This range has now been replaced by the FC102 HVAC drive. |
|

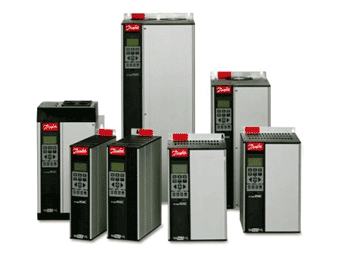

The Danfoss VLT 6000 HVAC provides unsurpassed performance, energy savings and improved control of HVAC systems. The Danfoss VLT 6000 HVAC, dedicated to HVAC applications, provides unsurpassed performance, energy savings and improved control of HVAC systems – including interfacing with building management systems. Precise control of temperature, pressure, and flow in HVAC applications result in the best environmental performance for building owners and operators.
|
|
Basic VLT6000 Drives conversion chart – 380 / 460V – 3 Phase 50/60Hz |
| VLT Type | KW | Amps | Obsolete VLT6000 Bookstyle IP20 | Obsolete VLT6000 Compact IP20 | New FC102 Equivalent IP20 | Obsolete VLT600 Compact IP54 | New FC102 Equivalent IP55 |
| VLT6002 | 1.1 | 3 | 175Z7004 | 175Z7022 | 131B4207 | 175Z7047 | 131B4221 |
| VLT6003 | 1.5 | 4.1 | 175Z7005 | 175Z7023 | 131B4217 | 175Z7048 | 131B3343 |
| VLT6004 | 2.2 | 5.6 | 175Z7006 | 175Z7024 | 131B4218 | 175Z7049 | 131B4222 |
| VLT6005 | 3 | 7.2 | 175Z7007 | 175Z7025 | 131B4219 | 175Z7050 | 131B4223 |
| VLT6006 | 4 | 10 | 175Z7008 | 175Z7026 | 131B3489 | 175Z7051 | 131B3318 |
| VLT6008 | 5.5 | 13 | 175Z7009 | 175Z7027 | 131B4220 | 175Z7052 | 131B4224 |
| VLT6011 | 7.5 | 16 | 175Z7010 | 175Z7028 | 131B3603 | 175Z7053 | 131B4225 |
| VLT6016 | 11 | 24 | 175Z7029 | 131F0427 | 175Z7054 | 131B1277 | |
| VLT6022 | 15 | 32 | 175Z7030 | 131F6631 | 175Z7055 | 131B6126 | |
| VLT6027 | 18.5 | 37.5 | 175Z7031 | 131F6632 | 175Z7056 | 131B3449 | |
| VLT6032 | 22 | 44 | 175Z7032 | 131F6629 | 175Z7057 | 131B4267 | |
| VLT6042 | 30 | 61 | 175Z7033 | 131F5945 | 175Z7058 | 131B4268 | |
| VLT6052 | 37 | 73 | 175Z7034 | 131F6630 | 175Z7059 | 131B7008 | |
| VLT6062 | 45 | 90 | 175Z7035 | 131F0340 | 175Z7060 | 131B7015 | |
| VLT6072 | 55 | 106 | 175Z4881 | 131F0341 | 175Z4883 | 131B7025 | |
| VLT6102 | 75 | 147 | Compact IP.00 | 178B4808 | 131F0342 | 178B5162 | 131B8595 |
| VLT6122 | 90 | 177 | 178B4810 | 131F0343 | 178B5163 | 131B6204 | |
| VLT6152 | 110 | 212 | 178B7522 | 178B7524 | 178B7523 | ||
| VLT6172 | 132 | 260 | 178B7525 | 178B7527 | 178B7526 | ||
| VLT6222 | 160 | 315 | 178B7528 | 178B7530 | 178B7529 | ||
| VLT6272 | 200 | 368 | 178B7531 | 178B7533 | 178B7532 | ||
| VLT6352 | 250 | 480 | 178B7538 | 178B7542 | 178B7540 | ||
| VLT6400 | 315 | 600 | 176F0918 | 176F0920 | 176F0922 | ||
| VLT6500 | 355 | 658 | 176F0924 | 176F0926 | 176F0928 | ||
| VLT6550 | 400 | 745 | 176F0930 | 176F0932 | 176F0934 |
| VLT6000 Descriptive codes – (working out equivalents for non standard drives) |
|
All Danfoss VLT Drives contain a descriptive code, if your drive is a non standard drive the best we for us to work out a new equivalent is to provide the descriptive code, from this information we can work out what this drive contains. See below data sheet for a breakdown of the descriptive code.
|
|
| For more information or price enquiries please contact southampton@cseuk.com or telephone – 02380 255757 |
