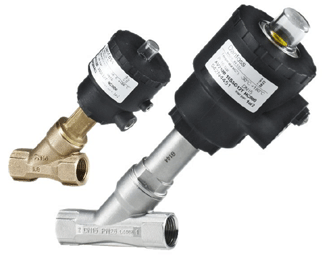

AV210 Angle-seat valve – NO |
|
The AV210 can operate at very high medium temperatures and viscosities, and can withstand dirt particles in the medium.
Made for air, neutral gases and fresh water applications, the
valve is designed to operate with media viscosities up to
|
| AV210 Bronze Valve Body |
| Order Code | Connection (“) |
Kv
|
Orifice (mm) |
Seal
|
Typecode |
Diameter Control Head(mm) |
Control Pressure (Bar) |
Differential Pressure min to max (Bar) | |
| 042N4430 | G 3/8 | 4.5 | 15 | PTFE | AV210B15G | G38TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4431 | G 1/2 | 5.7 | 15 | PTFE | AV210B15G | G12TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4432 | G 3/4 | 10 | 20 | PTFE |
AV210B20G
|
G34TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4433 | G 1 | 20 | 25 | PTFE | AV210C25G | G1TNO000 | 63 | 4 > 10 | 0 > 16 |
| 042N4434 | G 1 1/4 | 29 | 32 | PTFE | AV210C32G | G114TNO000 | 63 | 6 > 10 | 0 > 16 |
| 042N4435 | G 1 1/2 | 46 | 40 | PTFE | AV210D40G | G112TNO000 | 90 | 5 > 10 | 0 > 16 |
| 042N4436 | G 2 | 74 | 50 | PTFE | AV210E50G | G2TNO000 | 110 | 5 > 10 | 0 > 16 |
| AV210 Stainless Steel Valve Body |
| Order Code | Connection (“) |
Kv
|
Orifice (mm) |
Seal
|
Typecode |
Diameter Control Head(mm) |
Control Pressure (Bar) |
Differential Pressure min to max (Bar) | |
| 042N4480 | G 3/8 | 4.9 | 15 | PTFE | AV210B15SS | G38TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4481 | G 1/2 | 5.7 | 15 | PTFE | AV210B15SS | G12TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4482 | G 3/4 | 10 | 20 | PTFE | AV210B20SS | G34TNO000 | 50 | 5 > 10 | 0 > 16 |
| 042N4483 | G 1 | 20 | 25 | PTFE | AV210C25SS | G1TNO000 | 63 | 5 > 10 | 0 > 16 |
| 042N4484 | G 1 1/4 | 29 | 32 | PTFE | AV210C32SS | G114TNO000 | 63 | 6 > 10 | 0 > 16 |
| 042N4485 | G 1 1/2 | 46 | 40 | PTFE | AV210D40SS | G112TNO000 | 90 | 5 > 10 | 0 > 16 |
| 042N4486 | G 2 | 74 | 50 | PTFE | AV210E50SS | G2TNO000 | 110 | 5 > 10 | 0 > 16 |
|
