BE Coils

Design In accordance with VDE 0580.
Voltage tolerance 220 and 380 V a.c. coils: +10%, -15%. 230/400 V a.c. coils: +6%, -10%.
Other a.c. coils with NC valve: +10%, -15%.
Other a.c. coils with NO valve and all d.c. coils: ― 10%.
Power consumption, cut in 44 VA a.c. coils only
Insulation of coil windings Class H according to IEC 85.
Connection BE – coils : Terminal box, Pg 13.5;
Enclosure, IEC 529 IP 67.
Ambient temperature Max. +50°C /+80°C.
Duty rating Continuous

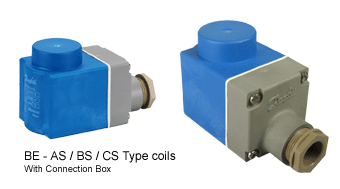

** Please note imprinted on the AC standard coil is the part code for the coil that does not include the connection box (plug). If you require the connection box please order the standard BE.

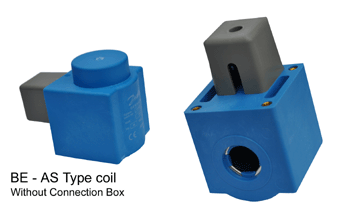

Please note Danfoss are no longer selling the 48 & 115 VAC – without connection box versions even though the part number is still stamped on the standard coils.
