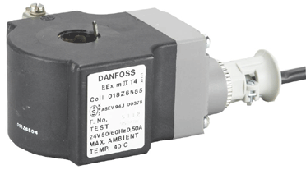

BO Coils

BO Coil – Coils for explosive areas

For explosion-risk environments, such as where flammable liquids and gases are produced, transported or tapped

• Approvals for use in Zone 1 according to Directive 94/9/EC (ATEX 100A) EN50014 and EN50028
• Medium temperature: Up to +90°C
• Ambient temperature: Up to +40°C
• IP 67 version with 5 m 3-core flying lead
• Seal kit as a.c.cessory for extremely wet and aggressive environments

Voltage tolerance ― 10%
Insulation of coil windings Class H according to IEC 85.
Connection 5 m 3-core flying lead
