Code: 032U7127
Buy 032U7127 Danfoss EV220B 25B Valve Body 1e NO | Order By 1pm For Same Day Shipping |
QtyAdd to Cart

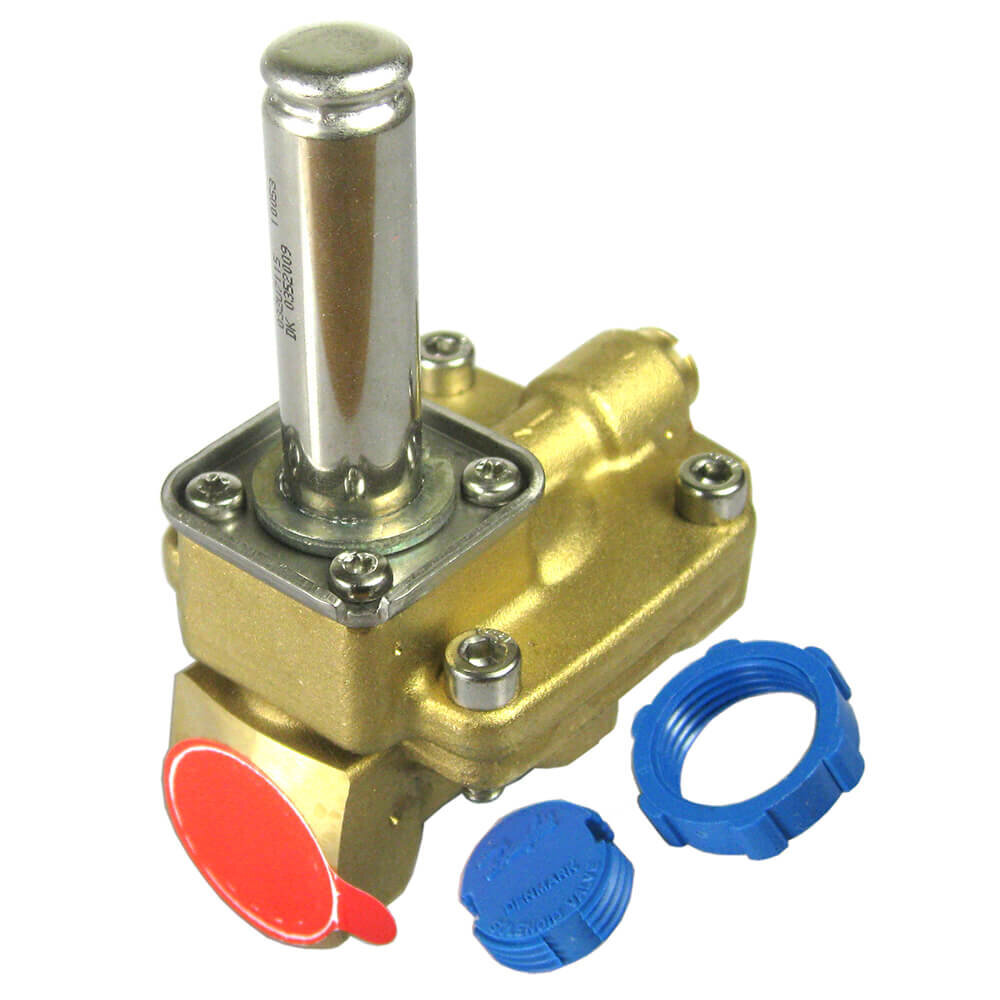

032U7127 Danfoss EV220B 25B Valve Body 1e NO | The Danfoss EV220B 15-50 range is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.
Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.
Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.
Characteristic | Value |
Type | EV220B |
Weight | 1.32 Kg |
Actuator size | 13.5 mm |
Actuator size | 0.53 in |
Ambient temperature max. [?C] | 80 ?C |
Ambient temperature max. [?F] | 176 ?F |
Body material | Brass |
Connection | G 1 |
Connection Internal/External | Internal |
Connection standard | ISO 228-1 |
Cv value [gal/min] | 12,300 gpm US |
Differential pressure | 0.3 - 16 bar |
Differential pressure | 4.3 - 228.6 psi |
Function | N O |
Kv value [m?/h] | 11,000 m3/h |
Max. Working Pressure | 16.0 bar |
Max. Working Pressure | 232 psig |
Medium temperature range [?C] | -30 - 140 ?C |
Medium temperature range [?F] | -20 - 285 ?F |
Number of ways | 2/2 |
Operation | Servo-operated (diaphragm) |
Orifice size | 1 in |
Orifice size | 25.00 mm |
Seal material | EPDM |
Type designation | Solenoid valve |
Gross Mass (Kg) | 1.38 |
---|---|
Net Mass (Kg) | 1.32 |
Pack QTY | 1 |
EAN | 5702423018871 |
Country of Origin | DK |
Commodity Code | 84818079 |
Unit of Measure | Each |
Make | Danfoss |
Alternate Code | 032U7127 |
Item Code | 032U7127 |
