CSE is increasingly seeing demand for solar technologies to be able to work with existing low voltage component and drives. Indeed, we were the first company in the UK to take delivery from ABB of this dedicated ACS355 Solar Pump Drive.

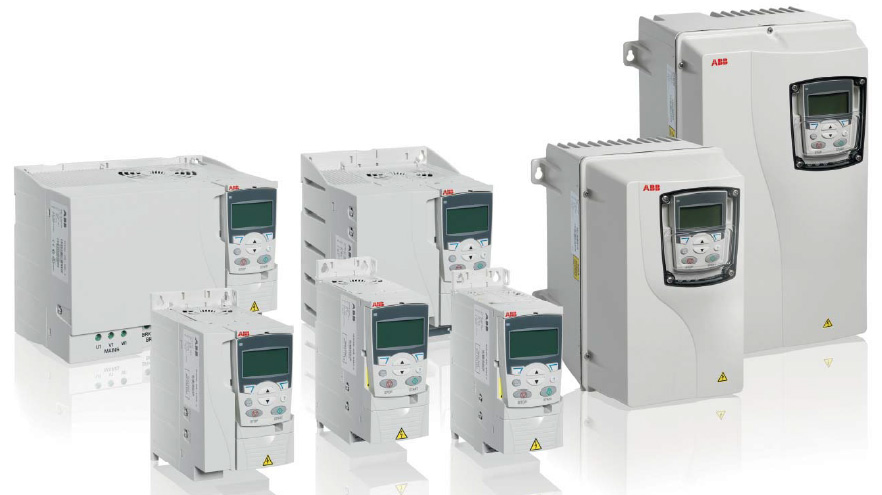

ACS355 Solar Inverter Drive
- Range of power options from 0.37 to 18.5 kW/0.5 to 25 hp
- Operates without grid directly from photovoltaic (PV) cells – where electricity supply is not consistent and predictable, users need not depend on the grid
- Automatic start and stop with solar radiation
- Built in Maximum power point tracking (MPPT) ensures that you get the most power output possible from your solar panel and maximises the performance of your pump through the day
- Simple installation and set-up for serial production
- Compatible with all pump types – built in measurement and flow detection function so that the drive turns off in case of dry run
- Good Return on Investment against diesel powered pumping
- Compact and uniform drive module design (IP20)
- High protection class variants (IP66/67) for harsh environments – protection against dust as well as strong jets of water from all directions
- Dual supply capability with change over switch enabling solar and grid compatability
- Sensorless vector control of induction motors and permanent magnet motors
- Safe Torque-off STO SIL3/PL e for emergency stop cat. 0
- Remote monitoring enabling monitoring solar pump parameters from anywhere
- Automatic start and stop with solar radiation
ACS355 Selection and Ordering
| Type Designation: | ACS355 | – | 0XX | – | 0XAX | – | X | + | N827 | + | XXX |
| Product Series | Constructions | Ratings & Types | Voltages | Solar Pump Software | Options |
ACS355 Solar Ratings Information
| Ratings for IP20 | Type Designation | Frame Size | ||
| Pn | Pn | I2N | ||
| kW | hp | A | ||
| 1-phase AC supply, 125 to 400 V DC or 200 to 240 V | ||||
| 0.37 | 0.5 | 4.7 | ACS355-01E-04A7-2+N827 | R1 |
| 0.75 | 1.0 | 6.7 | ACS355-01E-06A7-2+N827 | R1 |
| 1.1 | 1.5 | 7.5 | ACS355-01E-07A5-2+N827 | R2 |
| 1.5 | 2.0 | 9.8 | ACS355-01E-09A8-2+N827 | R2 |
| 3-phase AC supply, 125 to 400 V DC or 200 to 240V | ||||
| 0.37 | 0.5 | 3.5 | ACS355-03E-03A5-2+N827 | R0 |
| 0.55 | 0.75 | 4.7 | ACS355-03E-04A7-2+N827 | R1 |
| 0.75 | 1.0 | 6.7 | ACS355-03E-06A7-2+N827 | R1 |
| 1.0 | 1.5 | 7.5 | ACS355-03E-07A5-2+N827 | R1 |
| 1.5 | 2.0 | 9.8 | ACS355-03E-09A8-2+N827 | R2 |
| 2.2 | 3.0 | 13.3 | ACS355-03E-13A3-2+N827 | R2 |
| 3.0 | 4.0 | 17.6 | ACS355-03E-17A6-2+N827 | R2 |
| 4.0 | 5.0 | 24.4 | ACS355-03E-24A4-2+N827 | R3 |
| 5.5 | 7.5 | 31.0 | ACS355-03E-31A0-2+N827 | R4 |
| 7.5 | 10.0 | 46.2 | ACS355-03X-46A2-2+N827 | R4 |
| 3-phase AC supply, 250 to 800 V DC or 380 to 480 V | ||||
| 0.37 | 0.5 | 1.9 | ACS355-03E-01A9-4+N827 | R0 |
| 0.55 | 0.75 | 2.4 | ACS355-03E-02A4-4+N827 | R1 |
| 0.75 | 1.0 | 3.3 | ACS355-03E-03A3-4+N827 | R1 |
| 1.1 | 1.5 | 4.1 | ACS355-03E-04A1-4+N827 | R1 |
| 1.5 | 2.0 | 5.6 | ACS355-03E-05A6-4+N827 | R1 |
| 2.2 | 3.0 | 7.3 | ACS355-03E-07A3-4+N827 | R1 |
| 3.0 | 4.0 | 8.8 | ACS355-03E-08A8-4+N827 | R1 |
| 4.0 | 5.0 | 12.5 | ACS355-03E-12A5-4+N827 | R3 |
| 5.5 | 7.5 | 15.6 | ACS355-03E-15A6-4+N827 | R3 |
| 7.5 | 10.0 | 23.1 | ACS355-03E-23A1-4+N827 | R3 |
| 11.0 | 15.0 | 31.0 | ACS355-03E-31A0-4+N827 | R4 |
| 15.0 | 20.0 | 38.0 | ACS355-03E-38A0-4+N827 | R4 |
| 18.5 | 25.0 | 44.0 | ACS355-03E-44A0-4+N827 | R4 |
| 3-phase AC supply, 125 to 400 V DC or 200 to 240 V | ||||
| 0.37 | 0.5 | 3.5 | ACS355-03E-03A5-2+N827+B063 | R1 |
| 0.55 | 0.75 | 4.7 | ACS355-03E-04A7-2+N827+B063 | R1 |
| 0.75 | 1.0 | 6.7 | ACS355-03E-06A7-2+N827+B063 | R1 |
| 1.1 | 1.5 | 7.5 | ACS355-03E-07A5-2+N827+B063 | R3 |
| 1.5 | 2.0 | 9.8 | ACS355-03E-09A8-2+N827+B063 | R3 |
| 2.2 | 3.0 | 13.3 | ACS355-03E-13A3-2+N827+B063 | R3 |
| 3.0 | 4.0 | 17.6 | ACS355-03E-17A6-2+N827+B063 | R3 |
| 3-phase AC supply, 250 to 800 V DC or 380 to 480 V | ||||
| 0.37 | 0.5 | 1.9 | ACS355-03E-01A9-4+N827+B063 | R1 |
| 0.55 | 0.75 | 2.4 | ACS355-03E-02A4-4+N827+B063 | R1 |
| 0.75 | 1.0 | 3.3 | ACS355-03E-03A3-4+N827+B063 | R1 |
| 1.1 | 1.5 | 4.1 | ACS355-03E-04A1-4+N827+B063 | R1 |
| 1.5 | 2.0 | 5.6 | ACS355-03E-05A6-4+N827+B063 | R1 |
| 2.2 | 3.0 | 7.3 | ACS355-03E-07A3-4+N827+B063 | R1 |
| 3.0 | 4.0 | 8.8 | ACS355-03E-08A8-4+N827+B063 | R1 |
| 4.0 | 5.0 | 12.5 | ACS355-03E-12A5-4+N827+B063 | R3 |
| 5.5 | 7.5 | 15.6 | ACS355-03E-15A6-4+N827+B063 | R3 |
 ACS355 Solar Drive Compliance
- UL, cUL, CE, C-Tick and GOST R Approvals
- Low Voltage Directive 73/23/EEC with supplements
- EMC Directive 89/336/EEC with supplements
- Quality assurance system ISO 9001
- Environmental system ISO 14001
- RoHS compliant
- DIN40050-9 (IP69K)
Click to download the ABB ACS355 solar pump drive PDF. This contains further information including pump cable length, cabinet mounted drives’ dimensions, wall mounted drive dimension, air flow and fuses selection tables.
