Cable Application

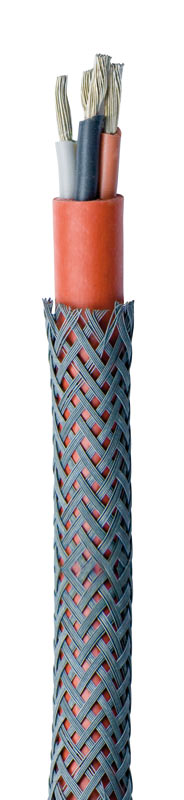

A high temperature silicone cable with steel wire braid - suitable for industrial areas where PVC insulated cables become brittle with increased temperature and mechanical requirements for example mechanical engineering, glass and ceramic fabrication and steel / iron fabrication. The steel wire braid protects the sheath against mechanical stress. Should the cable burn, an insulation silicon dioxide layer will remain on the conductor to render it short circuit proof.
Technical Information
| Conductor: | Stranded conductor of tinned copper wire | |
| |
According to VDE 0295 class 5, IEC 60228 | |
| Insulation Resistance: | Minimum 20 MΩ x km at 20°C | |
| Armouring: | Galvanised steel wire braid | |
| Sheath: | Silicone outer sheath, red - brown | |
| Colours: | To VDE 0293, more than six cores black with printed numbers in layers | |
| Twisting: | Cores twisted in layers | |
| Rated Voltage U0/U: | 300/500V | |
| Test Voltage: | 2000V | |
| Temperature Range: | -50°C up to 180°C | |
| |
Short term: +200°C | |
| Minimum Bending Radius: | Flexing: | 20 x Ø |
| |
Static: | 10 x Ø |
| Halogen Free: | To VDE 0472 part 813 and IEC 754-1 | |
| Number of cores x cross section mm2 | Maximum Ω of single wire mm | Maximum strand diameter mm | Core diameter mm± 5% | o.d. mm ± 5% | Copper weight kg/km | Weight approx. kg/km |
| 2 x 0.75 | 0.21 | 1.16 | 2.26 | 7.2 | 14.4 | 88 |
| 3 x 0.75 | 0.21 | 1.16 | 2.26 | 7.6 | 21.6 | 99 |
| 4 x 0.75 | 0.21 | 1.16 | 2.26 | 8.1 | 29 | 121 |
| 5 x 0.75 | 0.21 | 1.16 | 2.26 | 9.2 | 36 | 147 |
| 6 x 0.75 | 0.21 | 1.16 | 2.26 | 9.9 | 43 | 169 |
| 7 x 0.75 | 0.21 | 1.16 | 2.26 | 9.9 | 50 | 178 |
| 2 x 1 | 0.21 | 1.35 | 2.44 | 7.6 | 19 | 98 |
| 3 x 1 | 0.21 | 1.35 | 2.44 | 8.0 | 29 | 119 |
| 4 x 1 | 0.21 | 1.35 | 2.44 | 8.8 | 38 | 139 |
| 5 x 1 | 0.21 | 1.35 | 2.44 | 9.7 | 48 | 167 |
| 6 x 1 | 0.21 | 1.35 | 2.44 | 10.4 | 58 | 185 |
| 7 x 1 | 0.21 | 1.35 | 2.44 | 10.4 | 67 | 194 |
| 2 x 1.5 | 0.26 | 1.61 | 2.70 | 8.3 | 29 | 126 |
| 3 x 1.5 | 0.26 | 1.61 | 2.70 | 8.7 | 43 | 143 |
| 4 x 1.5 | 0.26 | 1.61 | 2.70 | 9.6 | 58 | 170 |
| 5 x 1.5 | 0.26 | 1.61 | 2.70 | 10.4 | 72 | 198 |
| 6 x 1.5 | 0.26 | 1.61 | 2.70 | 11.4 | 86 | 245 |
| 7 x 1.5 | 0.26 | 1.61 | 2.70 | 11.4 | 101 | 256 |
| 8 x 1.5 | 0.26 | 1.61 | 2.70 | 12.7 | 116 | 315 |
| 10 x 1.5 | 0.26 | 1.61 | 2.70 | 14.0 | 144 | 370 |
| 12 x 1.5 | 0.26 | 1.61 | 2.70 | 14.5 | 173 | 408 |
| 14 x 1.5 | 0.26 | 1.61 | 2.70 | 15.6 | 202 | 471 |
| 16 x 1.5 | 0.26 | 1.61 | 2.70 | 17.0 | 231 | 541 |
| 18 x 1.5 | 0.26 | 1.61 | 2.70 | 17.8 | 260 | 599 |
| 20 x 1.5 | 0.26 | 1.61 | 2.70 | 18.3 | 288 | 630 |
| 24 x 1.5 | 0.26 | 1.61 | 2.70 | 20.4 | 346 | 760 |
| 2 x 2.5 | 0.26 | 2.05 | 3.31 | 9.7 | 48 | 165 |
| 3 x 2.5 | 0.26 | 2.05 | 3.31 | 10.2 | 72 | 238 |
| 4 x 2.5 | 0.26 | 2.05 | 3.31 | 11.5 | 96 | 268 |
| 5 x 2.5 | 0.26 | 2.05 | 3.31 | 12.7 | 120 | 315 |
| 6 x 2.5 | 0.26 | 2.05 | 3.31 | 13.7 | 144 | 370 |
| 7 x 2.5 | 0.26 | 2.05 | 3.31 | 13.7 | 168 | 385 |
| 12 x 2.5 | 0.26 | 2.05 | 3.31 | 17.6 | 288 | 608 |
| 2 x 4 | 0.31 | 2.58 | 4.01 | 11.5 | 77 | 255 |
| 3 x 4 | 0.31 | 2.58 | 4.01 | 12.2 | 115 | 299 |
| 4 x 4 | 0.31 | 2.58 | 4.01 | 13.4 | 154 | 365 |
| 5 x 4 | 0.31 | 2.58 | 4.01 | 15.1 | 192 | 455 |
| 6 x 4 | 0.31 | 2.58 | 4.01 | 16.4 | 230 | 525 |
| 7 x 4 | 0.31 | 2.58 | 4.01 | 16.4 | 269 | 556 |
| 2 x 6 | 0.31 | 3.22 | 4.61 | 12.9 | 115 | 326 |
| 3 x 6 | 0.31 | 3.22 | 4.61 | 13.7 | 173 | 401 |
| 4 x 6 | 0.31 | 3.22 | 4.61 | 14.8 | 230 | 485 |
| 5 x 6 | 0.31 | 3.22 | 4.61 | 16.8 | 288 | 602 |
| 6 x 6 | 0.31 | 3.22 | 4.61 | 18.2 | 346 | 701 |
| 7 x 6 | 0.31 | 3.22 | 4.61 | 18.2 | 403 | 736 |
| 2 x 10 | 0.41 | 4.78 | 6.51 | 17.3 | 192 | 543 |
| 3 x 10 | 0.41 | 4.78 | 6.51 | 18.4 | 288 | 652 |
| 4 x 10 | 0.41 | 4.78 | 6.51 | 20.6 | 384 | 825 |
| 5 x 10 | 0.41 | 4.78 | 6.51 | 22.5 | 480 | 987 |
| 2 x 16 | 0.41 | 6.0 | 7.66 | 20.2 | 308 | 748 |
| 3 x 16 | 0.41 | 6.0 | 7.66 | 21.5 | 462 | 909 |
| 4 x 16 | 0.41 | 6.0 | 7.66 | 23.4 | 616 | 1183 |
| 5 x 16 | 0.41 | 6.0 | 7.66 | 26.2 | 770 | 1393 |
| 2 x 25 | 0.41 | 7.45 | 9.46 | 23.8 | 480 | 1046 |
| 3 x 25 | 0.41 | 7.45 | 9.46 | 26 | 720 | 1347 |
| 4 x 25 | 0.41 | 7.45 | 9.46 | 28.3 | 960 | 1678 |
| 2 x 35 | 0.41 | 8.93 | 10.86 | 27.2 | 672 | 1378 |
| 3 x 35 | 0.41 | 8.93 | 10.86 | 29 | 1008 | 1846 |
| 4 x 35 | 0.41 | 8.93 | 10.86 | 32.3 | 1344 | 2240 |
| 2 x 50 | 0.41 | 10.4 | 12.66 | 31.4 | 960 | 1869 |
| 3 x 50 | 0.41 | 10.4 | 12.66 | 33.5 | 1440 | 2384 |
| 4 x 50 | 0.41 | 10.4 | 12.66 | 37.2 | 1920 | 2702 |
| 2 x 70 | 0.51 | 12.44 | 14.61 | 35.3 | 1344 | 2482 |
| 3 x 70 | 0.51 | 12.44 | 14.61 | 38.3 | 2016 | 3314 |
| 4 x 70 | 0.51 | 12.44 | 14.61 | 42.5 | 2688 | 4074 |
| 2 x 95 | 0.51 | 14.9 | 17.36 | 41.4 | 1824 | 3380 |
| 3 x 95 | 0.51 | 14.9 | 17.36 | 44.8 | 2736 | 4299 |
| 4 x 95 | 0.51 | 14.9 | 17.36 | 49.8 | 3648 | 5339 |
| 3 x 120 | 0.51 | 16.53 | 18.91 | 48.8 | 3465 | 5277 |
| 4 x 120 | 0.51 | 16.53 | 18.91 | 54.1 | 4620 | 6571 |
For the current ratings refer to the IEE Regulations tables 4F2A and B to 4F3A and B.
