CSE supplies ABB handles for the SwitchLine OT 16 to 125 base and DIN rail mounted switches. Indication I-O and ON-OFF, shaft (diameter 5mm) has to be ordered separately, door drilling 22.5mm.
| Description |
Type |
Order Code |
Internal Handle knob, IP20 suitable for OT16 – 80 no shaft required
|
| Black |
OHB 3 |
1SCA022648R4110 |
IP54 handles, suitable for OT16 – 80E
|
| Black |
OHB1AH |
1SCA022347R3810 |
| Yellow – red |
OHY1AH |
1SCA022347R3900 |
IP54 handles door interlock in ON position, suitable for OT16 – 80E
|
| Black |
OHB1AH1 |
1SCA022364R6340 |
| Yellow-Red |
OHY1AH1 |
1SCA022364R6420 |
IP54 handles, padlockable with one padlock with bail diameter 5 – 6.3mm, suitable for OT16 – 125E
|
| Black |
OHB3AH |
1SCA022428R8960 |
| Yellow-Red |
OHY3AH |
1SCA022428R9180 |

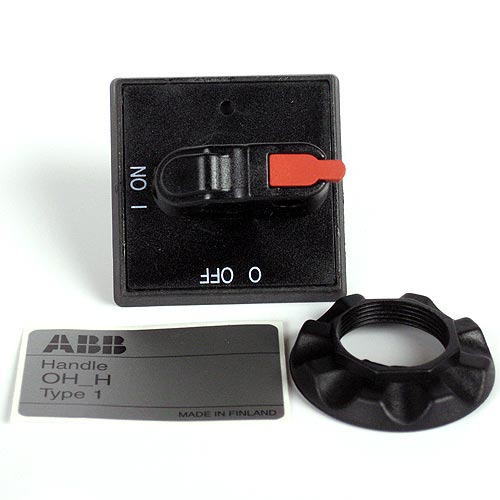

IP54 handles, padlocakble with one padlock with bail diameter 5 – 6.3mm, suitable for OT16 – 125E
|
| Black |
OHB3AH1 |
1SCA022428R9000 |

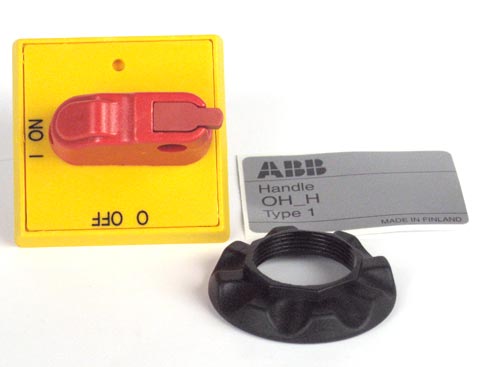

| Yellow – Red |
OHY3AH1 |
1SCA022400R3710 |
IP54 handles, padlockable with max. three padlocks with bail diameter 5 – 8mm, door interlock in ON position, defeatable, suitable for OT16 – 125E
|
| Black |
OHB2AJ |
1SCA022347R4030 |
| Yellow – Red |
OHY2AJ |
1SCA022353R2840 |

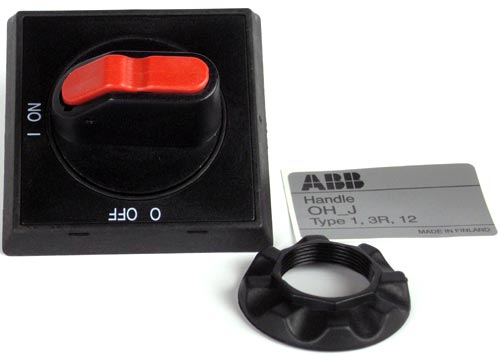

IP54 handles, padlockable with max. three padlocks with bail diameter 5 – 8mm, door interlock in ON position, suitable for OT16 – 125E
|
| Black |
OHB2AJ1 |
1SCA022358R5110 |
| Yellow – Red |
OHY2AJ1 |
1SCA022358R5290 |
