Prysmian Spreaderflex YSLTOE Spreader Basket Cable
These cables are designed for use on the latest generations of high-speed container cranes with gravity-fed collector baskets. They combine the features of superior flexibility with additional ballast needed to operate at speeds of up to 160 meters/min (8.75 ft/sec).
The Spreaderflex Feeder cable is used for load lifting equipment, e.g. spreader with high mechanical stress in gravity fed collector basket operation. Installation of the cable must be laid into the basket in a counter clockwise direction – detailed instructions are available on request.

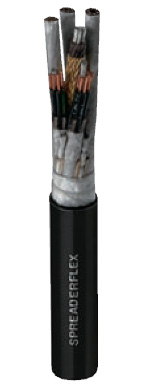

Spreaderflex Cable Construction
| Conductor: | Bare Electrolytic copper, extremely fine stranded, class FS. DIN VDE 0295 |
| Insulation: | PROTODUR. Basic material PVC Insulation compound YI 2. DIN VDE 0295 |
| Core identification: | Black insulation with light printed numbers Protective earth conductor – green/ yellow |
| Core assembly: | Cores laid up into bundles |
| Bundle assembly: | Bundles laid up around the central support element |
| Support element: | Aramide threads woven round lead ball cords, arranged centrally. The breaking load is ratedto provide a safety factor of 5 when the cable is suspended vertically for 50 m. |
| Outer sheath: | PU Compound 11YM1 |
| Sheath Colour: | Black |
| Marking: | SPREADERFLEX YSLTOEJ (number of cores) x (crosssection) |
Prysmian Spreaderflex Technical Characteristics
| Approvals: | Based on DIN VDE 0250; GOST R |
| Rated Voltage: | Uo/U = 300/500 kV |
| Max AC Voltage: | Uo/U = 318/550 kV |
| Max DC Voltage: | Uo/aU = 413/825 kV |
| AC Test Voltage: | 2.0 kV, 5 min |
| Current Carrying Capacity: | According to DIN VDE 0298, Part4 |
| Bus capability: | With special bus elements: ASIBus, Profibus or use of fibre optics elements for trouble free data transmission |
| Ambient Temperature: | Fully Flexible Operation : 20 °C to + 60 °C Fixed installation: -20 °C to + 60 °C |
| Max. permissible operating temperature of the conductor: |
70 °C |
| Max. permissible short circuit temperature of the conductor |
150 °C |
| Tensile Load: | Increased tensile load through additional support elements |
| Minimum bending radii (at the entry): | According to DIN VDE 0298, Part 3 |
| Hoist Travel Speed: | Up to 160 m/min |
| Basket design | Dimensions depending on system |
| Resistance to oil | DIN VDE 0473, Part 81121, Para. 10 |
| Weather resistance | Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture |
Prysmian Spreaderflex Ordering Information
| Number of cores and nominal cross-section |
Order No. | Conductor Diameter | Overall Diameter of cable Min. Value |
Overall Diameter of cable Max. Value |
Approx. net weight for 1000 m |
| mm | mm | mm | kg/km | ||
| YSLTOEJ control cables with integrated fibre optics | |||||
| 30 x 2.5 + 6 x 1LWL | 5DE5 775 | 2.0 | 35.1 | 38.1 | 2300 |
| 32 x 2.5 + 4 x 3 LWL | 5DE5 756 | 2.0 | 35.1 | 38.1 | 2360 |
| 36 x 2.5 + 6 x 1 LWL | 5DE5 758 | 2.0 | 37.5 | 40.5 | 3060 |
| 42 x 2.5 + 6 x 1 LWL | 5DE5 753 | 2.4 | 48.1 | 51.1 | 4150 |
| 52 x 2.5 + 2 x 3 LWL | 5DE5 767 | 2.0 | 46.7 | 49.7 | 3460 |
| 32 x 3.5 + 4 x 1 LWL | DE5 782 | 2.4 | 38.7 | 41.7 | 3330 |
| YSLTOEJ control cables | |||||
| 48 x 1 | 5DE5 797 | 1.5 | 31.6 | 33.1 | 1860 |
| 24 x 2.5 | 5DE5 725 | 2.0 | 28.1 | 31.1 | 1600 |
| 30 x 2.5 | 5DE5 798 | 2.0 | 31.6 | 33.1 | 2010 |
| 36 x 2.5 | 5DE5 788 | 2.0 | 35.1 | 36.5 | 2330 |
| 42 x 2.5 | 5DE5 790 | 2.0 | 37.5 | 38.8 | 3020 |
| 48 x 2.5 | 5DE5 760 | 2.0 | 42.3 | 43.3 | 3420 |
| 54 x 2.5 | 5DE5 767 | 2.0 | 46.7 | 47.5 | 3460 |
| 20 x 3.5 | 5DE5 777 | 2.4 | 30.3 | 33.3 | 2000 |
| 24 x 3.5 | 5DE5 778 | 2.4 | 31.5 | 33.0 | 2060 |
| 30 x 3.5 | 5DE5 780 | 2.4 | 34.9 | 37.9 | 2610 |
| 36 x 3.5 | 5DE5 781 | 2.4 | 38.7 | 39.9 | 3300 |
| 42 x 3.5 | 5DE5 785 | 2.4 | 43.4 | 44.4 | 4170 |
| 7 x 4 | 5DE5 768 | 2.5 | 18.2 | 20.2 | 750 |
| YSLTOEJ control cables with bus element | |||||
| 24 x 2.5 + 1 x (2 x 1)C | 5DE5 754 | 2.0 | 31.6 | 34.6 | 2090 |
| 24 x 2.5 + 4 x (2 x 1)C | 5DE5 761 | 2.0 | 42.1 | 45.1 | 3100 |
| 36 x 2.5 + 5 x (2 x 1)C | 5DE5 757 | 2.0 | 42.3 | 45.3 | 3700 |
| YSLTOEO AWG control cables with integrated fibre optics | |||||
| 20x12AWG+4×1 LWL | 5DE5 776 | 2.4 | 32.0 | 35.0 | 2330 |
| 32x12AWG+4×1 LWL | 5DE5 786 | 2.4 | 38.9 | 41.9 | 3740 |
| 36x12AWG+6×1 LWL | 5DE5 771 | 2.4 | 43.4 | 46.4 | 4740 |
| 38x12AWG+4×1 LWL | 5DE5 773 | 2.4 | 43.4 | 46.4 | 4780 |
| YSLTOEO AWG control cables | |||||
| 20x12AWG | 5DE5 794 | 2.4 | 30.3 | 33.3 | 1910 |
| 24x12AWG | 5DE5 795 | 2.4 | 32.0 | 35.0 | 2470 |
| 30x12AWG | 5DE5 793 | 2.4 | 34.9 | 37.9 | 2610 |
| 36x12AWG | 5DE5 770 | 2.4 | 38.9 | 41.9 | 3830 |
| 36x12AWG | 5DE5 796 | 2.4 | 38.9 | 41.9 | 3620 |
| 42x12AWG | 5DE5 792 | 2.4 | 43.4 | 46.4 | 4150 |
| YSLTOEO AWG control cables with bus element | |||||
| 20x12AWG+2x(4x16AFS) | 5DE5 784 | 2.4 | 37.3 | 40.3 | 3150 |
| 28x12AWG+4x16AWG | 5DE5 783 | 2.4 | 38.9 | 41.9 | 3050 |
| 28x12AWG+8x16AWG | 5DE5 774 | 2.4 | 38.9 | 41.9 | 3760 |
