Inverter, connection to frequency converters, UV Resistant, halogen-free, 0.6/1 kV
Cable Application
Suitable in plants and buildings, as a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments for outdoor applications.
Used in the automobile industry, food industry, environmental engineering, packaging industry, tool making machinery, handling equipment, for SIMOVERT drivers, they are particularly suitable for use with industrial pumps, ventilators, conveyor belts and air-conditioning installations and similar applications.

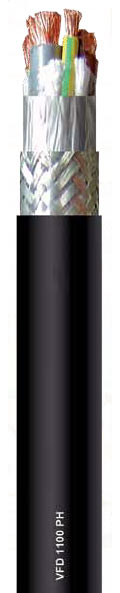

Cable Construction
| Conductor: | Flexible red copper conductor Cl. 5, acc to IEC 60228, DIN VDE 0295 |
| Cores colour: | 4 conductors: grey, brown, black and green/yellow 3 conductors + 3 earth conductors: grey, brown, black and green/yellow divided in 3 cores |
| Stranding: | in layers |
| Screen: | 1 Aluminium tape + PETP foil 2 tinned copper braid |
| Outer sheath: | black (RAL 9005) PUR special compound |
Cable Features
- UV resistant
- outdoor use acc. to DIN VDE 0250
- EMC (electromagnetic compatibility)
- acc. to EN 55011 and DIN VDE 0875 part 11
- low mutual capacitance
- low coupling resistance
- Installation in hazardous areas
- low cupling resistance for high electromagnetic
- compatibility
- good for heavy applications
Technical Data
| Nominal voltage: | UO/U 0,600/1000 V | |
| Test voltage: | 4000 V | |
| Operating voltage max.: |
A.C. and 3-phase D.C. operation |
700/1200 V 900/1800 V |
| Peak value Û: | 1700 V | |
| Temperature range: | ||
| Fixed installation: | – 50°C to + 90°C | |
| Flexible application: | – 40°C to + 90°C | |
| Max. temp. on conductor: | + 90°C | |
| Short circuit temperature: | + 250°C | |
| Radiation resistance: | up to 80×106 cJ/kg (up to 80 Mrad). | |
| Insulation resistance: | min. 200 MOhm x km | |
| Coupling resistance: | depending on the cross-section: max. 250 Ohm/km |
|
| Min. bending radius: | – Fixed installation for outer Ø: up to 12 mm : 5 x d 12 to 20 mm : 7.5 x d 20 mm : 10 x d – Free movement for outer Ø: up to 12 mm : 10 x d 12 to 20 mm : 15 x d 20 mm : 20 x d |
|
|
Mutual capacitance: depending on the cross-section: |
depending on the cross-section: core/core 70 to 250 nF/km core/screen 110 to 410 nF/km |
|
| Resistance: | Self-extinguishing and flame retardant: acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2, DIN VDE 0482 part 266-2-5 / EN 50266-2-5 / IEC 60332-3AHalogen-free: acc. to DIN VDE 0482, part 267 / EN 50267-2-1 / IEC 60754-1 |
|
Ordering Information
Black 4 Conductors
| No. of cores x cross section n x mm2 |
Outer Ø Ca. mm ±10% |
Current capacity at +30°C Amps |
Copper weight kg/km |
Cable weight approx. kg/km |
AWG no.*) |
| 4 G 1.5 | 10.6 | 18 | 95 | 230 | 16 |
| 4 G 2.5 | 12.3 | 26 | 150 | 300 | 14 |
| 4 G 4 | 14.5 | 34 | 235 | 485 | 12 |
| 4 G 6 | 16.4 | 44 | 320 | 633 | 10 |
| 4 G 10 | 20.1 | 61 | 533 | 863 | 8 |
| 4 G 16 | 23.4 | 82 | 789 | 1291 | 6 |
| 4 G 25 | 27 | 108 | 1236 | 1862 | 4 |
| 4 G 35 | 30.7 | 135 | 1662 | 2611 | 2 |
| 4 G 50 | 36.1 | 168 | 2345 | 2955 | 1 |
| 4 G 70 | 42.3 | 207 | 3196 | 3953 | 2/0 |
| 4 G 95 | 47.7 | 250 | 4316 | 5304 | 3/0 |
| 4 G 120 | 51.9 | 292 | 5435 | 6604 | 4/0 |
| 4 G 150 | 57.5 | 335 | 6394 | 7043 | 250 MCM |
| 4 G 185 | 61.1 | 382 | 7639 | 8384 | 350 MCM |
| 4 G 240 | 67 | 453 | 10013 | 11010 | 450 MCM |
| 4 G 300 | 71.5 | 523 | 12570 | 13800 | 550 MCM |
Black 3 Conductors
| No. of cores x cross section n x mm2 |
Outer Ø Ca. mm±10% | Current capacity at +30°C Amps | Copper weight kg/km | Cable weight approx. kg/km | AWG no.*) |
| 3 x 1.5 + 3 G 0.25 | 10.2 | 18 | 86 | 140 | 16 / 24 |
| 3 x 2.5 + 3 G 0.5 | 11.4 | 26 | 144 | 220 | 14 / 20 |
| 3×4 +3 G 0.75 | 13 | 34 | 224 | 323 | 12 / 19 |
| 3 x 6 +3 G 1 | 15 | 44 | 298 | 420 | 10 / 18 |
| 3 x 10 + 3 G 1.5 | 18.4 | 61 | 491 | 615 | 8 / 16 |
| 3 x 16 + 3 G 2.5 | 21.6 | 82 | 723 | 819 | 6 / 14 |
| 3 x 25 + 3 G 4 | 25.3 | 108 | 1138 | 1325 | 4 / 12 |
| 3 x 35 + 3 G 6 | 27.8 | 135 | 1535 | 1718 | 2 / 10 |
| 3 x 50 + 3 G 10 | 32.6 | 168 | 2208 | 2399 | 1 / 8 |
| 3 x 70 + 3 G 10 | 39 | 207 | 2871 | 3056 | 2/0 / 8 |
| 3 x 95 +3 G 16 | 44.3 | 250 | 3953 | 4162 | 3/0 / 6 |
| 3 x 120 +3 G 16 | 46.3 | 292 | 4836 | 5074 | 4/0 / 6 |
| 3 x 150 + 3 G 25 | 53.5 | 335 | 5412 | 6128 | 250 MCM / 4 |
| 3 x 185 + 3 G 35 | 59.5 | 382 | 6969 | 7189 | 350 MCM / 2 |
| 3 x 240 +3 G 42.5 | 65.2 | 453 | 8540 | 9540 | 450 MCM / 1 |
| 3 x 300 + 3 G 50 | 69.5 | 523 | 11050 | 11560 | 550 MCM / 1 |
Other dimensions and colors available on request
