Inverter Cable for Connection to Frequency Converters, 0.6/1 kV
Cable Application
Suitable for inverter drive motor power supply for the frquency converters, used in automative and food industry, packaging industry, machine tools and handling equipment.

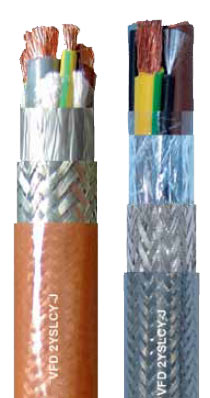

Cable Construction
| Conductor: | Flexible copper conductor Cl. 5,acc to IEC 60228, DIN VDE 0295 |
| Insulation: | PE compound |
| Cores colour: | 4 conductors: grey, brown, black and green/yellow 3 conductors + 3 earth conductors: grey, brown, black and green/yellow divided in 3 cores |
| Stranding: | in layers |
| Screen: | 1 Aluminium tape + PETP foil 2 tinned copper braid |
| Outer sheath: | transparent, PVC compound (4 conductors), transparent-orange, PVC compound (3 + 3G/Y conductor version) |
Cable Features
- Installation in hazardous areas
- acc. to DIN VDE 0250
- EMC (electromagnetic compatibility)
- acc. to EN 55011 and DIN VDE 0875 part 11
- low mutual capacitance
- low coupling resistance
Cable Technical Data
| Nominal voltage: | UO/U 600/1000 V |
| Test voltage: | 4000 V |
| Operating voltage max.: | A.C. and 3 phase 700 / 1200 VD.C. operation 900 /1800 V |
| Peak value Û: | 1700 V |
| Temperature range: | |
| Fixed laying: | – 40°C up to + 70°C |
| Flexible application: | + 5°C up to + 70°C |
| Max. temp. on conductor: | + 90°C |
| Short circuit temperature: | + 250°C |
| Radiation resistance: | up to 80×106 cJ/kg |
| Insulation resistance: | min. 200 MOhm x km |
| Coupling resistance: | depending on the cross-sectiion:max. 250 Ohm/km |
| Min. bending radius: | |
| Fixed installation: | up to 12 mm: 5 x d> 12 to 20 mm : 7,5 x d> 20 mm: 10 x d |
| Flexible installation: | up to 12 mm: 10 x d> 12 to 20 mm: 15 x d> 20 mm: 20 x d |
| Mutual capacitance:(4 conductors version): | depending on the cross-section core/core70 to 250 nF/km core/screen 110 to 410 nF/km |
| Resistance: | Self-extinguishing and flame retardant:acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2 |
Ordering Information
Transparent 4 Conductors
| No. of cores x cross section n x mm2 |
Outer Ø Ca. mm ±10% |
Copper weight kg/km |
Cable weight approx. kg/km |
AWG no.*) |
| 4 G 1.5 | 10.6 | 95 | 230 | 16 |
| 4 G 2,5 | 12.3 | 150 | 300 | 14 |
| 4 G 4 | 14.5 | 235 | 485 | 12 |
| 4 G 6 | 16.4 | 320 | 633 | 10 |
| 4 G 10 | 20.1 | 533 | 863 | 8 |
| 4 G 16 | 23.4 | 789 | 1291 | 6 |
| 4 G 25 | 27 | 1236 | 1862 | 4 |
| 4 G 35 | 30.7 | 1662 | 2611 | 2 |
| 4 G 50 | 36.1 | 2345 | 2955 | 1 |
| 4 G 70 | 42.3 | 3196 | 3953 | 2/0 |
| 4 G 95 | 47.7 | 4316 | 5304 | 3/0 |
| 4 G 120 | 51.9 | 5435 | 6604 | 4/0 |
| 4 G 150 | 57.5 | 6394 | 7043 | 250 MCM |
| 4 G 185 | 61.1 | 7639 | 8384 | 350 MCM |
| 4 G 240 | 67.0 | 10013 | 11010 | 450 MCM |
| 4 G 300 | 71.5 | 12570 | 13800 | 550 MCM |
Transparent / Orange 3 + 3 Conductors
| No. of cores x cross section n x mm2 |
Outer Ø Ca. mm ±10% |
Copper weight kg/km |
Cable weight approx. kg/km |
AWG no.*) |
| 3 x 1.5 + 3 G 0.25 | 10.2 | 86 | 140 | 16 / 22 |
| 3 x 2.5 +3 G 0.5 | 11.4 | 144 | 220 | 14 / 20 |
| 3 x 4 + 3 G 0.75 | 13 | 224 | 323 | 12 / 19 |
| 3 x 6 + 3 G 1 | 15 | 298 | 420 | 10 / 18 |
| 3 x 10 + 3 G 1.5 | 18.4 | 491 | 615 | 8 / 16 |
| 3 x 16 + 3 G 2.5 | 21.6 | 723 | 819 | 6 / 14 |
| 3 x 25 + 3 G 4 | 25.3 | 1138 | 1325 | 4 / 12 |
| 3 x 35 + 3 G 6 | 27.8 | 1535 | 1718 | 2 / 10 |
| 3 x 50 + 3 G 10 | 32.6 | 2208 | 2399 | 1 / 8 |
| 3 x 70 + 3 G 10 | 39 | 2871 | 3056 | 2/0 / 8 |
| 3 x 95 + 3 G 16 | 44.3 | 3953 | 4162 | 3/0 / 6 |
| 3 x 120 + 3 G 16 | 46.3 | 4836 | 5074 | 4/0 / 6 |
| 3 x 150 +3 G 25 | 53.5 | 5412 | 6128 | 250 MCM / 4 |
| 3 x 185 + 3 G 35 | 59.5 | 6969 | 7189 | 350 MCM / 2 |
| 3 x 240 + 3 G 50 | 65.2 | 8540 | 9540 | 450 MCM / 1 |
Other dimensions and colours available on request
Halogen Free
On request, it is possible to obtain 2XSLCH-J Halogen-free Version :
Insulation: XLPE special compound. acc. to IEC 60502-4 (max. core temperature + 90°C).
Outer sheath: special type SHF1 (HM2) acc. to
IEC 60092-353
