Cable Application

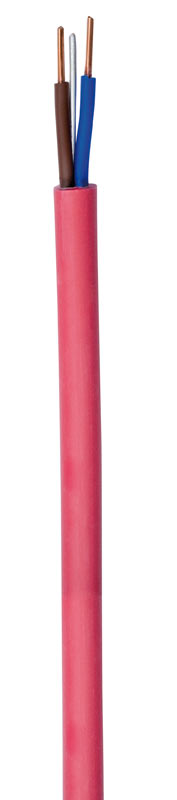

Alsecure® NX200 is a standard fire resistant cable for fire alarm and emergency lighting installations complying with BS 5839 and BS 5266. Alsecure® NX200 has been designed to be a highly user friendly, high performance Fire Resistant cable. NX200 meets and exceeds requirements of all applicable standards and carry independent third party certification.
Alsecure® NX200 is fully LUL and BASEC approved.
To provide the ultimate ease and speed of installation, stripping of both insulation and sheath couldn't be easier. Just lightly ring the sheath and break it away together with the bonded aluminium foil. The most common sizes have no additional binders or loose foils so the silicone conductor insulation can then be stripped off in an instant saving you time and money.
Nexans Alsecure® NX200 can be used for:
- AC and DV voltages of 300/500V.
- Fire detection and fire alarm critical signal path according to BS 5839-1:2002 + A2:2008 “Standard” application areas
- Voice alarm systems according to BS5839-8:2008
- Emergency lighting systems according to BS5266-1:2005
Nexans Alsecure® NX200 improved features:
- Speedy stripping and termination
- 120 minute circuit integrity (PH120 to BS EN 50200 & Annex E) > 60 min longer thanmost other standard fire resistant cables
- Halogen-free, flame retardant, low smoke, good chemical resistance
When the protection of human life and sensitive electronic equipment is paramount, choosing the right materials is essential. As well as assuring the integrity of fire safety systems installing Alsecure® NX200 also limits the effects of toxic fumes and smoke, thus aiding the facilitation of effective escape for people from a fire situation and reducing collateral damage to expensive equipment.
Types of Approval
BASEC
LPCB
Application
- Fire detection and fire alarm systems for buildings
- Public address systems
- Emergency lighting

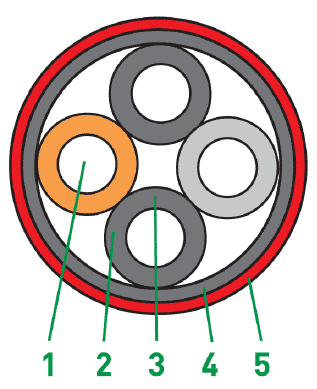

Design
- Conductor: Bare copper, Solid Class 1 (1, 1.5mm2), Stranded Class 2 (2.5 4mm2) according toBS 6360/IEC 60228
- Insulation: Silicon rubber to BS 7655
- Un-insulated Protective Conductor: Tinned copper according to BS6360: same class and cross sectionalarea as insulated conductor
- Screen: Aluminium/polyester tape with optional polyester tape
- Outer Sheath: Halogen free polyolefin Colour: red or white
Technical Information
Insulation: | Silicone |
Armour Type: | Aluminium tape |
Outer Sheath: | HFFR (Halogen Free Flame Retardant) |
Marking: | ALSECURE NX 200 - n x s |
|
300/500V - BASEC - LPCB - BS 7629-1 - |
|
BS 6387 CWZ - BS 8434-1 - NEXANS - week/year |
Standards: | BS 7629 Part 1 |
|
BS 5839-1: 2002 Cat. Standard |
Electrical Characteristics: | Rated Voltage Uo/U 300/500 V |
Fire Resistant: | BS 6387 CWZ, BS 8434-1: 2003, BS EN 50200 PH 30 |
Flame Retardant: | BS EN 50265 1 & 2.1: IEC 60332 Part 1 |
Low Smoke: | BS EN 50268: IEC 60754 |
Halogen Free: | BS EN 50267: IEC 60754 |
Low Toxicity: | BS EN 50267: IEC 60754 |
Low Corrosivity: | BS EN 50267: IEC 60754 |
Temperature: | -20oC + 60oC |
Electrical Characteristics
Fire Resistant: | BS 6387 CWZ, BS EN 50200 PH 120 |
Fire Retardant: | IEC 60332-1 |
Smoke Density: | EN/IEC 61034-2 |
Operating Temperature: | Maximum: 90°C |
|
Minimum: -25°C |
Bending Factor when Installed: | 6(xD) |
Chemical Resistance: | Good |
Rated Voltage Uo/U (Um): | 300/500V |
Maximum Operating Voltage: | 500V |
Test Voltage: | 2000V |
Core Identification
Two Cores: | Brown - blue |
Three Cores: | Brown - black - grey |
Four Cores: | Brown - black - grey - blue |
Stock info | Product name | No. of cores n |
Nom. cross section mm2 |
Nom. outer diam. mm |
Cable weight approx. kg/km |
Conductor class |
Maximum conductor resistance Ω/km |
Current rating DC or single phase AC enclosed Amps |
Current rating DC or single phase AC direct clipped Amps |
Voltage drop DC or single core AC mV/A/m |
Made to order | NX200 2 x 1 | 2 | 1 | 8 | 79 | 1 | 18.1 | 17 | 19 | 46 |
Made to order | NX200 3 x 1 | 3 | 1 | 8.4 | 97 | 1 | 18.1 | 17 | 19 | 46 |
Made to order | NX200 4 x 1 | 4 | 1 | 9.3 | 122 | 1 | 18.1 | 17 | 19 | 46 |
In stock | NX200 2 x 1.5 | 2 | 1.5 | 8 | 89 | 1 | 12.1 | 22 | 24 | 31 |
In stock | NX200 3 x 1.5 | 3 | 1.5 | 8.4 | 110 | 1 | 12.1 | 22 | 24 | 31 |
In stock | NX200 4 x 1.5 | 4 | 1.5 | 9.5 | 133 | 1 | 12.1 | 22 | 24 | 31 |
In stock | NX200 2 x 2.5 | 2 | 2.5 | 9.3 | 126 | 1 | 7.41 | 30 | 33 | 19 |
In stock | NX200 3 x 2.5 | 3 | 2.5 | 10.1 | 161 | 1 | 7.41 | 30 | 33 | 19 |
Made to order | NX200 4 x 2.5 | 4 | 2.5 | 11.2 | 201 | 1 | 7.41 | 30 | 33 | 19 |
In stock | NX200 2 x 4 | 2 | 4 | 11.3 | 196 | 2 | 4.61 | 40 | 45 | 12 |
Made to order | NX200 4 x 4 | 4 | 4 | 14.1 | 315 | 2 | 4.61 | 40 | 45 | 12 |
In stock | NX200 7 x 1.5 | 7 | 1.5 | 11.8 | 221 | 1 | - | - | - | - |
Made to order | NX200 12 x 1.5 | 12 | 1.5 | 14.8 | 340 | 1 | - | - | - | - |
4 Conductors + |
||||||||||
Made to order | NX200 19 x 1.5 | 19 | 1.5 | 17.5 | 510 | 1 | - | - | - | - |
Made to order | NX200 7 x 2.5 | 7 | 2.5 | 13.7 | 310 | 1 | - | - | - | - |
|
NX200 12 x 2.5 | 12 | 2.5 | 17.9 | 490 | 1 | - | - | - | - |
|
NX200 19 x 2.5 | 19 | 2.5 | 20.8 | 810 | 1 | - | - | - | - |
Rating factor for different ambient temperature
Ambient Temperature °C | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
Rating Factor | 1.02 | 1.00 | 0.96 | 0.91 | 0.87 | 0.82 | 0.76 |
Rating factor for groups
Number of circuits | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Rating factor | 1.00 | 0.80 | 0.70 | 0.65 | 0.60 | 0.57 | 0.54 |
Click to download our Catalogue PDF for Alsecure NX200 Cable.
