RHEYCORD®-PUR R Cable
Reeling Cables with PUR Outer Sheath 300/500 V 0.6/1 (1.2) kV
Applications
Halogen and silicone free PUR 0.6/1 (1.2) kV reeling cable for control and power supplies. Used e.g. in spring operated reels, drag chains and other drum applications.

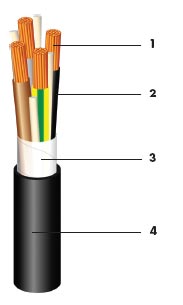

Design
| 1. Conductor | Flexible, plain copper, “FSC” better than IEC 60228 class 5 |
| 2. Insulation | Special TPE-E, thermoplastic polyester elastomer |
| 3. Anti-torsion braid | |
| 4. Outer sheath | PUR refer to EN 50363-10-2 Heavy duty abrasion and notch-resistant |
| Colour: | Black |
Marking
RHEYCORD PUR-R
Number of cores – cross-section Voltage – NEXANS – year
Core Identification
DIN VDE 0298 part 308/
HD 308 S2
4 cores:green/yellow – brown -black – grey
5 cores:green/yellow – blue – brown -black – grey
>5 cores: black with white printed numbers – green/yellow (in the outer layer)
Standards
Nexans specification
Mechanical properties
| Tensile stress of the conductor | static | 15 N/mm2 |
| dynamic | 30 N/mm2 | |
| Bending radii | according to DIN VDE 298, | |
| Tests | alternating/reversed and roller bending test, | |
| drag e-chain test, torsional resistance test | ||
| Speed limits | up to 180 m/min |
Chemical properties
Oil resistant.
For indoor and outdoor applications. Moisture, UV and ozone resistance.
Silicone and halogen free.
Electrical and Thermal properties
| Nominal voltage: | ||
| – cross section . 1 mm2 | Uo/U | 300/500 V |
| – cross section . 1.5 mm2 | Uo/U | 0.6/1 kV |
| Test voltage: | ||
| – Power | 3.0 kV in AC | |
| – Control | 2.0 kV in AC | |
| Current rating (A) | see electrical characteristics page 3.2 B | |
| Max. temperature at the conductor: | ||
| – in service | + 90 ‹C | |
| – under short-circuit conditions | + 250 ‹C | |
| Max. surface temperature: | ||
| – fixed installation | – 50 ‹C up to + 80oC | |
| – mobile operation | – 40 ‹C up to + 80oC | |
RHEYCORD®-PUR R
|
Number of cores and nominal
cross-section |
Outer diameter
approx. |
Weight
approx. |
|
|
(mm2)
|
(mm)
|
(kg/km)
|
|
| CONTROL | 4 x 1.5 | 8 | 98 |
| 5 x 1.5* | 9 | 128 | |
| 7 x 1.5* | 11 | 210 | |
| 12 x 1.5* | 17 | 330 | |
| 18 x 1.5* | 20 | 520 | |
| 24 x 1.5* | 23 | 660 | |
| 30 x 1.5 | 24 | 700 | |
| 42 x 1.5 | 28 | 950 | |
| 4 x 2.5* | 9 | 143 | |
| 5 x 2.5* | 10 | 184 | |
| 7 x 2.5* | 13 | 240 | |
| 12 x 2.5* | 19 | 470 | |
| 18 x 2.5* | 23 | 700 | |
| 24 x 2.5* | 26 | 950 | |
| 30 x 2.5* | 28 | 1,040 | |
| 36 x 2.5 | 30 | 1,240 | |
| 42 x 2.5 | 32 | 1,462 | |
| POWER | 4 x 4* | 11 | 219 |
| 4 x 6* | 13 | 295 | |
| 4 x 10* | 17 | 536 | |
| 4 x 16* | 19 | 830 | |
| 4 x 25* | 24 | 1,190 | |
| 4 x 35* | 28 | 1,660 | |
| 4 x 50 | 34 | 2,580 | |
| 4 x 70 | 42 | 3,240 | |
| 4 x 95 | 48 | 3,795 | |
| 4 x 120 | 53 | 4,800 | |
| 4 x 150 | 57 | 5,920 | |
| 5 x 4* | 12 | 270 | |
| 5 x 6* | 13 | 360 | |
| 5 x 10* | 19 | 665 | |
| 5 x 16* | 23 | 782 | |
| COMPOSITE | 19 x 2.5 + 5 x 1.5 (CE)* | 24 | 860 |
| 25 x 2.5 + 5 x 1.5 (CE) | 26 | 1,040 | |
| BUS | 3 x (2 x 1)C | 16 | 410 |
Options
Further numbers of cores and cross-section upon request
